| Lieu d'origine: | Chine |
| Nom de marque: | EFFEMAX |
| Certification: | No |
| Numéro de modèle: | ZXMC |
| Quantité de commande min: | 1 ensemble |
|---|---|
| Prix: | USD30000/set |
| Détails d'emballage: | Caisse en bois navigable |
| Délai de livraison: | 30 JOURS OUVRABLES |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 20 ensembles/mois |
| Application: | Affaiblissement des dents et réparations | Range de la lame de scie: | Max2500mm |
|---|---|---|---|
| Type de lame de scie: | scie à chaud et lame de scie à friction, lame de scie segmentaire | Mode: | Contrôle CNC |
| Profil des dents: | réglé par l'utilisateur | Fonction: | Dentissage à la scie |

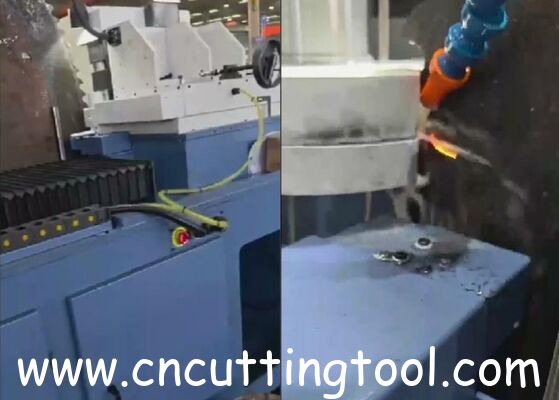

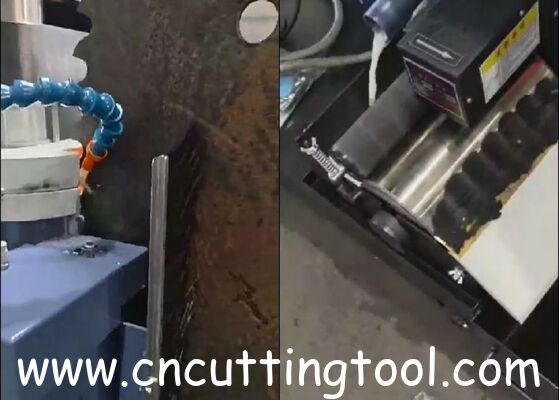

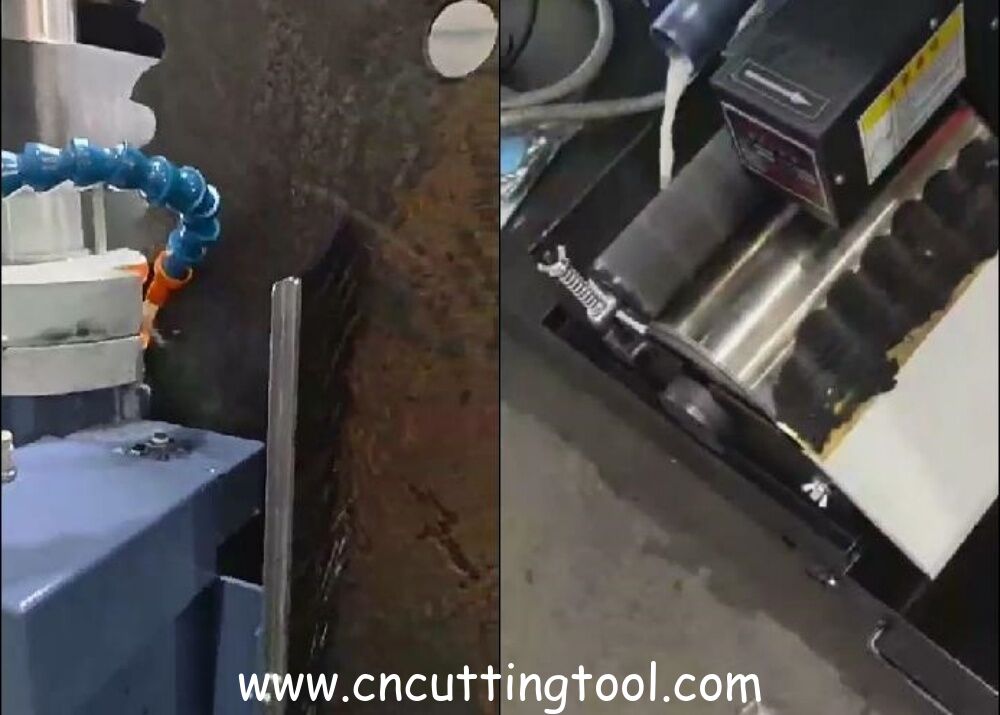

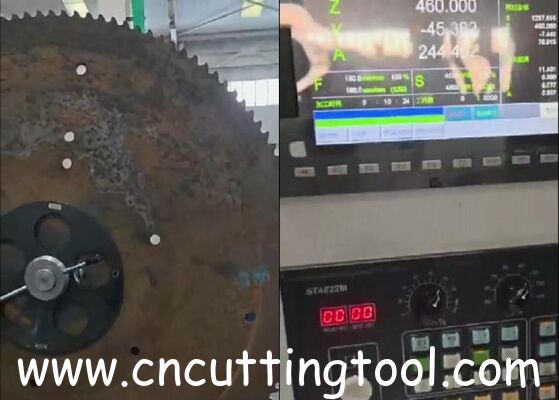

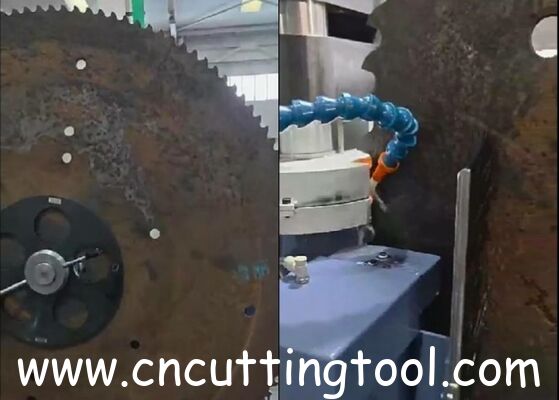

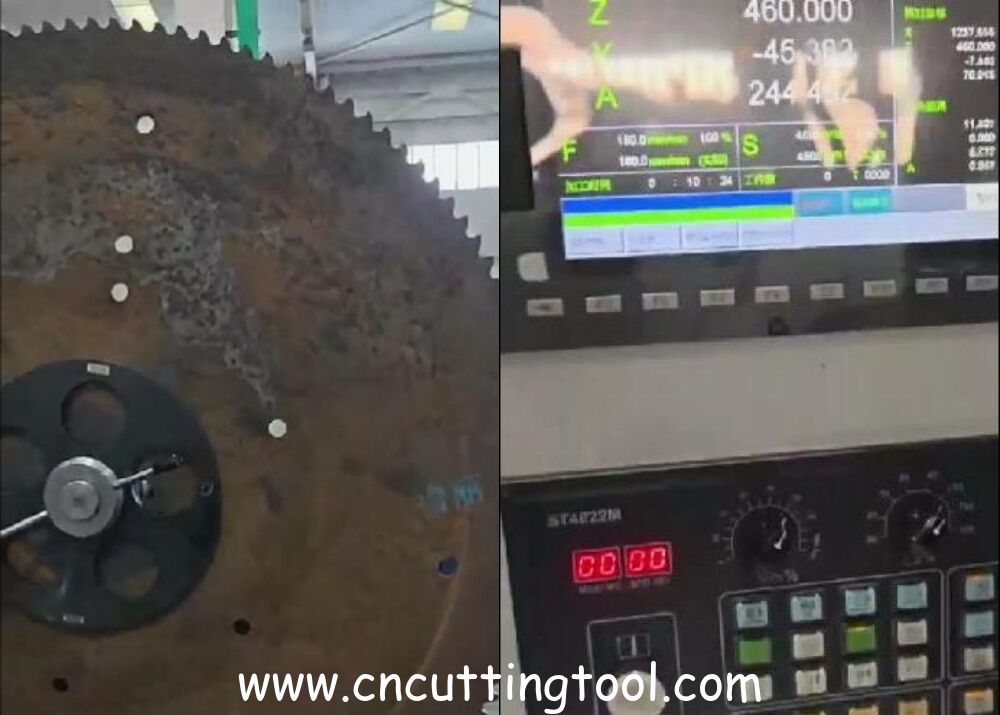

Multi function CNC control saw blade sharpening and grinding machine
Application

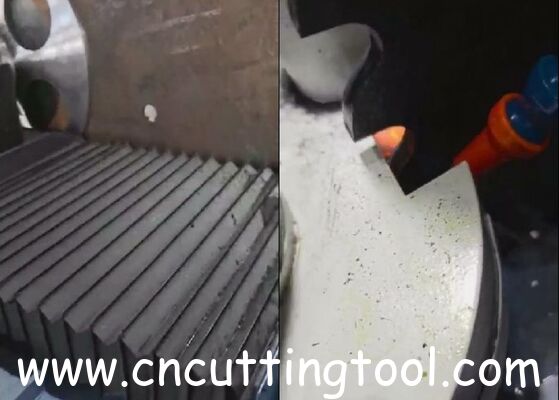

Grinding tooth profile:
hot saw blade tooth profile
segmental saw blade tooth profile
high-speed steel tooth profile
TCT saw blade seat and tooth back (cannot grind carbide tooth profile)
as long as it is a tooth profile that can be made by CAD, it can be ground by the multi function grinding machine.
CBN grinding wheel

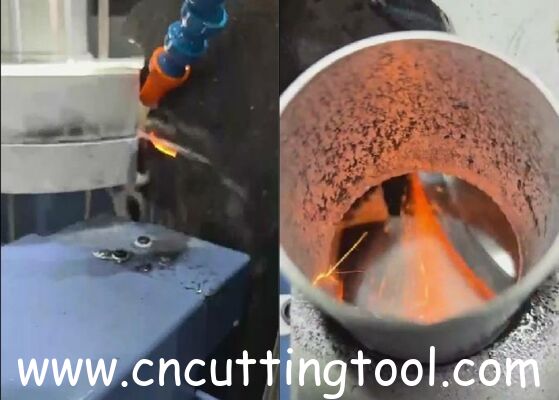

Cooling with water, no dust
Video tag: https://youtube.com/shorts/RCNO4yAzCFM?si=DZfnxvVSxqWl9t0q
Parameter:
| Name | Data |
| Saw blade diameter range | Max 2500mm |
| Saw blade thickness | 6-18mm |
| Power supply volatge | AC380V/50Hz |
| Air source | 0.5-0.9Mpa |
| Air sourse pressure | 0.5-1.0Mpa |
| Working pressure | 0.6Mpa |
| Power of motor | 4 KW |
| Power of control | 0.5KW |
| Diameter of ginding wheel | 250mm |
| Main machine size | 2200x1400x1150mm |
| Electric cabinet size | 1100x540x300mm |
